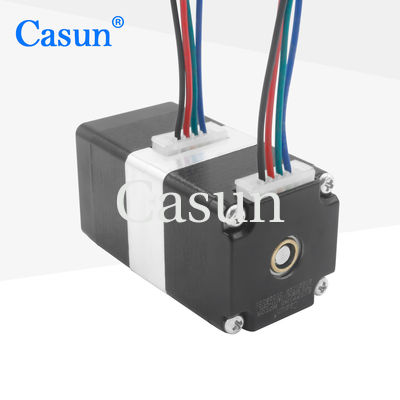

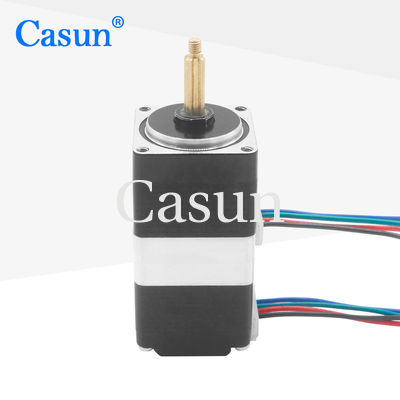

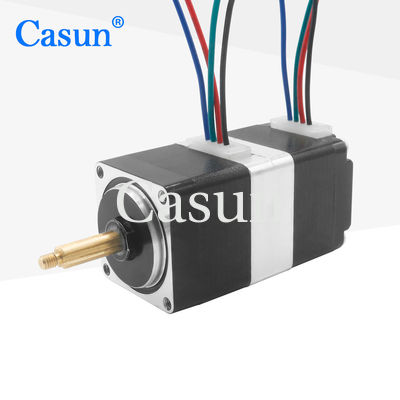

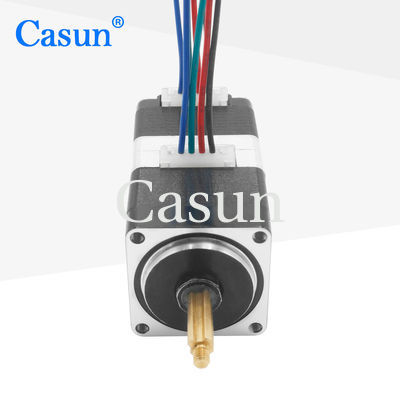

28mm Hybrid Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.M

28mm Hybrid Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.M

Nama merek:	Casun
Nomor Model:	S28D41114111-C27L
MOQ:	1 buah
Harga:	$26-$31
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

55mN.m

Saat ini:

0,67A

Panjang motor:

Batang:

Panjang 22mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29xc14m

Menyoroti:

28mm Hybrid Non Captive Stepper Motor

Non Captive Stepper Motor NEMA 11

Deskripsi Produk

Casun Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.m CE ROHS

NEMA 11 Non Captive Stepping Motor Multi Motion 28*28*55mm 55mN.m with CE ROHS

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	55 mN.m
Resistance	9.2 ohm
Inductance	5.7 mH
Rotor Inertia	-
Motor weight	-
Number of leads	4
Connection	Bipolar

Torque Curves

Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
27 mm 30 mm 38 mm 42 mm 47 mm	3.5	0.6096	20-1000 mm
		1.2192
		2.44
		4
	4	2
	4.76	5.08
	5	2
		4
		8
		5.08
	5.56	4.8768

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
