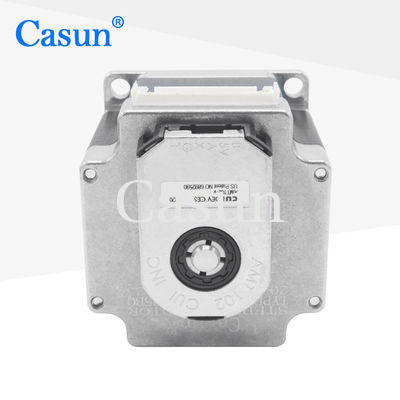

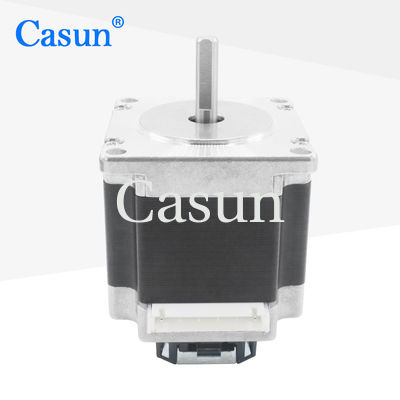

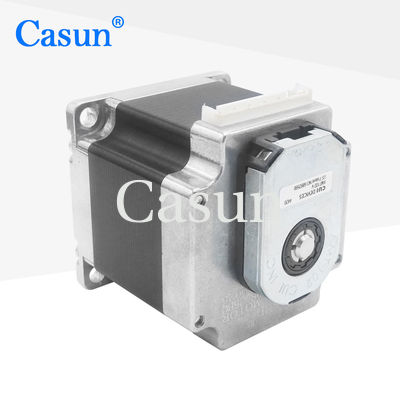

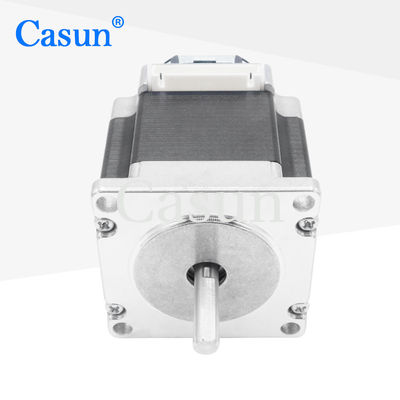

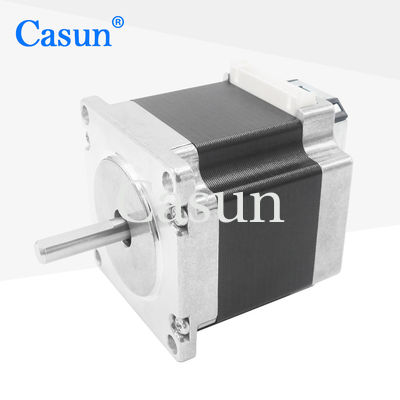

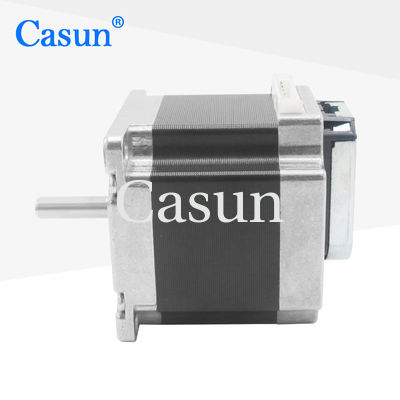

57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS

57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS

Nama merek:	Casun
Nomor Model:	57SHD0408-25BQ
MOQ:	1 buah
Harga:	$21.54-$24.94
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Warna:

Hitam

Arus / Fase:

2.5amp

Memegang Torsi:

1,2Nm

Sudut langkah:

1,8 derajat

Fase:

Nilai Tegangan:

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

2.5A Nema 23 Closed Loop Motor

Shaft Nema 23 Closed Loop Motor

Deskripsi Produk

57*57mm Casun Nema 23 2.5A Closed Loop Motor 25mm Shaft 3V Stepper Motor with ROHS

Nema23 57MMX57MM Hybrid Closed Loop Stepper Motor 1.2Nm 25mm Shaft 2.5A 3V DC for CNC SMT

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.5 Amp
Holding Torque	1.2N.m
Resistance	1.2hm
Inductance	4.2mH
Rotor Inertia	260g-cm²
Motor weight	0.6 kg
Encoder Pulsh	1000
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS 1

Please click the "Get a quote" button below to tell us your requirements.
