DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home

DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home

Nama merek:	Casun
Nomor Model:	57SHD4935-KH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

Memegang Torsi:

3000mN.m

Saat ini:

Panjang motor:

100mm

Batang:

Tidak ada

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

57SHD4935-KH Non Captive Stepper Motor

100mm Non Captive Stepper Motor

Deskripsi Produk

The 57mm Hybrid Stepper Motor Series comes in a range of sizes and provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.

Features:

Both high torque and accuracy
For electronic industrial equipment and high-tech industry equipment
Within 48 hours, one of our engineers will contact you with the best option
Expert in professional drivetrain solutions
High torque and high precision

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	4.5 A
Holding Torque	3000 mN.m
Resistance	1.3 ohm
Inductance	6.0 mH
Rotor Inertia	650 g-cm²
Motor weight	1 kg
Number of leads	4
Connection	Bipolar

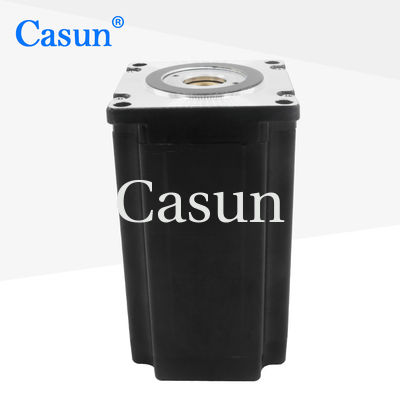

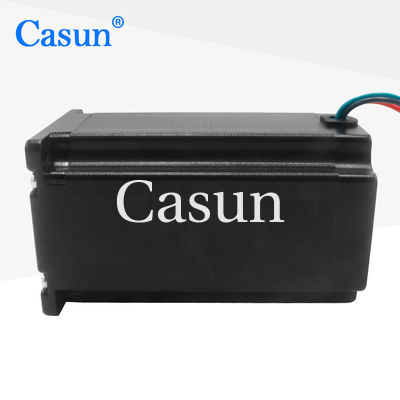

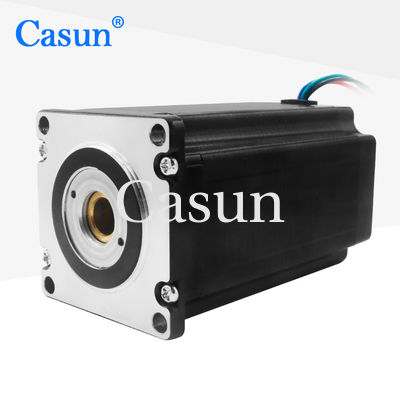

Appearance

DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 0

Dimensions

DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
