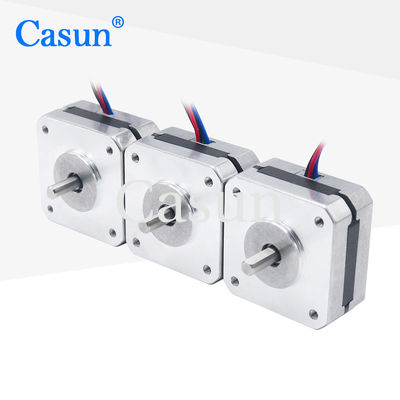

NEMA 17 Hybrid Stepper Motor 2 phase 424221mm Ultrathin Body 9Ncm for CNC Kit

NEMA 17 Hybrid Stepper Motor 2 phase 424221mm Ultrathin Body 9Ncm for CNC Kit

Nama merek:	Casun
Nomor Model:	42SHD4910-14B
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

90mN.m

Saat ini:

1.0A

Panjang motor:

21mm

Batang:

Penggilingan Poros Datar Panjang 14mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

424221mm NEMA 17 Hybrid Stepper Motor

9Ncm NEMA 17 Hybrid Stepper Motor

9Ncm NEMA 17 Stepper Motor

Deskripsi Produk

NEMA 17 stepper motors typically have lower costs, making them highly attractive in cost sensitive applications.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Professional drivetrain solution specialist
Our engineering team will reach out within 48 hours to deliver the optimal solution

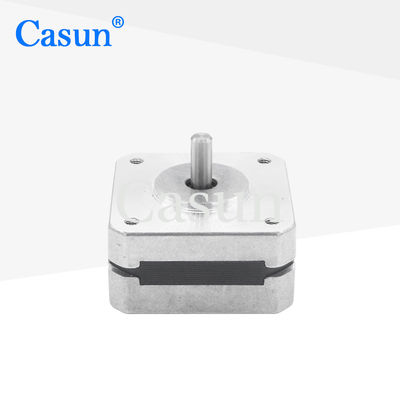

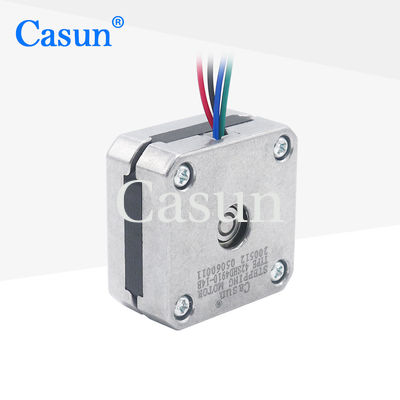

Appearance

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 0

Dimensions

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	90 mN.m
Resistance	3.3 ohm
Inductance	3.0 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
