424234mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer

424234mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer

Nama merek:	Casun
Nomor Model:	42SHD0002-24B1
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

300mN.m

Saat ini:

0,5A

Panjang motor:

34 MM

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

3D Printer NEMA 17 Steppting Motor

34mm NEMA 17 Steppting Motor

12V NEMA 17 Steppting Motor

Deskripsi Produk

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

In the field of robotics, 42mm stepper motors are often used to control joint motion.

Features:

High torque and high precision
High-tech industry and electronic industry equipment necessitate multiple international certifications
Available in single or double shaft versions
We are open to contract manufacturing arrangements
We actively pursue dealers!

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.55 A
Holding Torque	300 mN.m
Resistance	22 ohm
Inductance	28 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

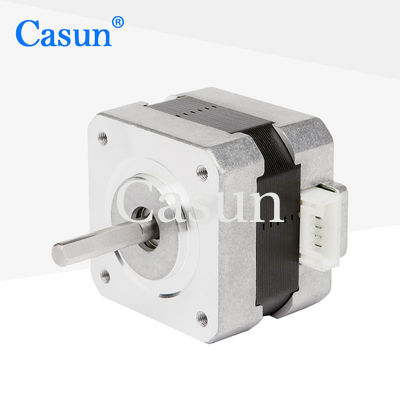

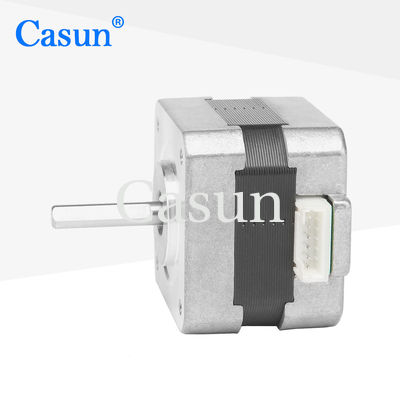

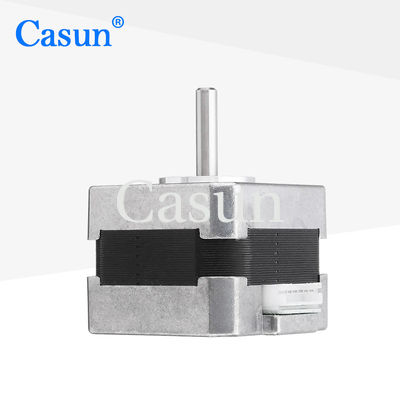

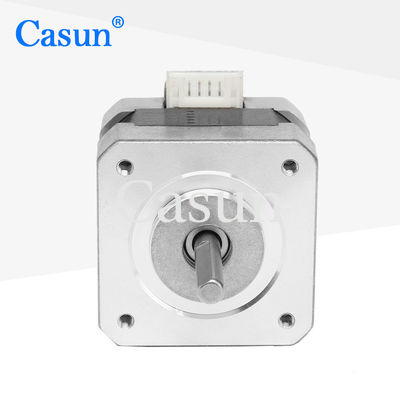

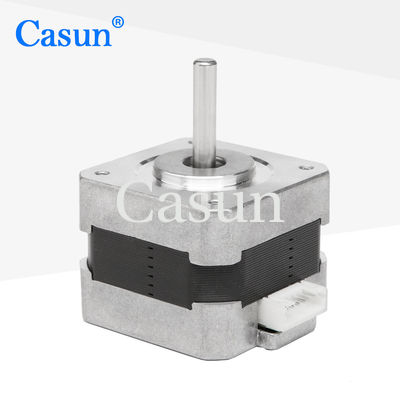

Appearance

42*42*34mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer 0

Dimensions

42*42*34mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
