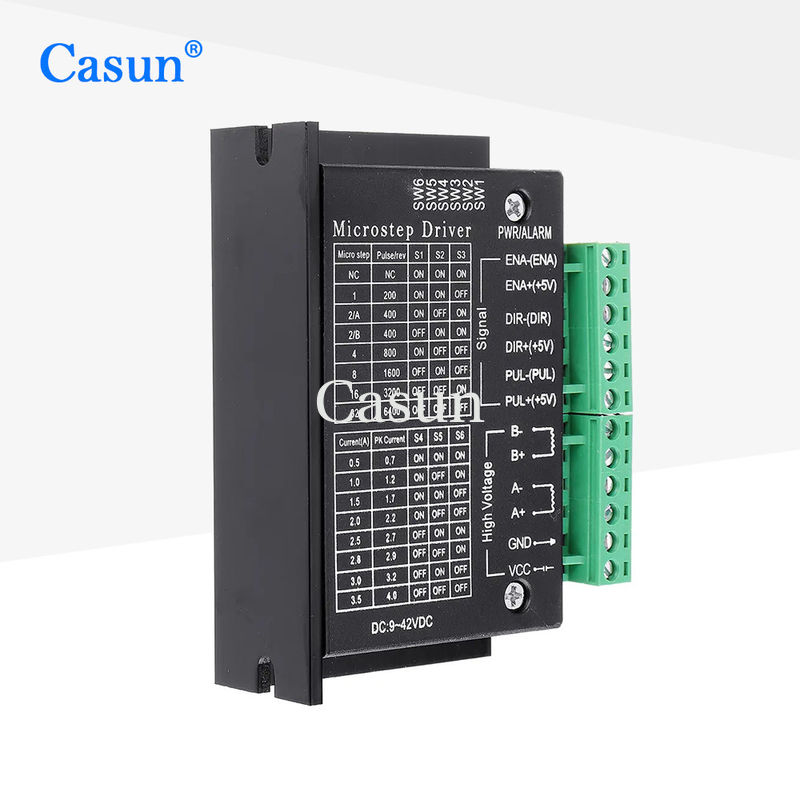

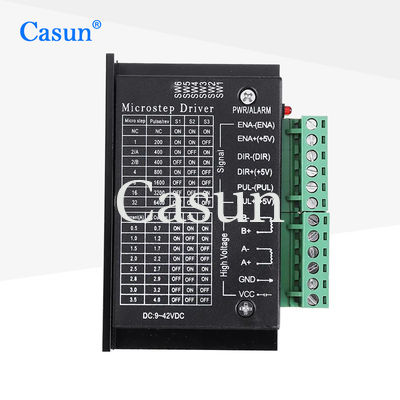

TB6600 2 Phase Stepper Motor Driver 32 Subdivision 3D Printer Stepper Driver

TB6600 2 Phase Stepper Motor Driver 32 Subdivision 3D Printer Stepper Driver

Nama merek:	Casun
Nomor Model:	TB6600
MOQ:	1 buah
Harga:	$3-$6
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T
Kemampuan Pasokan:	5000pcs+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Warna:

Hitam

Ukuran:

96*57*28mm

Voltase:

9-24v

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

38X29X18cm

Menyoroti:

TB6600 2 Phase Stepper Motor Driver

TB6600 3D Printer Stepper Driver

Stepper Motor Driver 32 Subdivision

Deskripsi Produk

TB6600 Stepper Motor Driver 32 subdivision 4.0A 42V pulse 3-24v controller 3D Printer driver

Product Name	TB6600
Size	965728mm
Supply voltage	9-24V
Color	Black

Specifications:

This drive is an upgraded version of the TB6600, the breakdown of heightening to 32 segments, for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8)

Micro stp	Pulse/rev	S1	S2	S3
NC	NC	ON	ON	ON
1	200	ON	ON	OFF
2/A	400	ON	OFF	ON
2/B	400	OFF	ON	ON
4	800	ON	OFF	OFF
8	1600	OFF	ON	OFF
16	3200	OFF	OFF	ON
32	6400	OFF	OFF	OFF

Current(A)	PK Current	S4	S5	S6
0.5	0.7	ON	ON	ON
1.0	1.2	ON	OFF	ON
1.5	1.7	ON	ON	OFF
2.0	2.2	ON	OFF	OFF
2.5	2.7	OFF	ON	ON
2.8	2.9	OFF	OFF	ON
3.0	3.2	OFF	ON	OFF
3.5	4.0	OFF	OFF	OFF

Features:

Suitable for stepping motor: 42-phase, 47-phase and 86-phase (4-wire, 6-wire and 8-wire)

1, 9V-42V DC power supply;

2, H-bridge bipolar constant-phase flow-driven;

3, the maximum output current of 4.0A eight optional;

4, up to 32 segments of six kinds of sub-modes available;

5, the input signal is high-speed optical isolation.

6, standard common anode single pulse interface;

7, offline hold function;

8, semi-enclosed chassis can accommodate more demanding environment;

9, provide energy semiautomatic current lock function;

10, built-in thermal protection and overcurrent protection.
