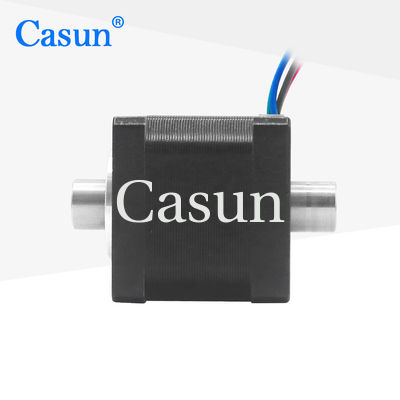

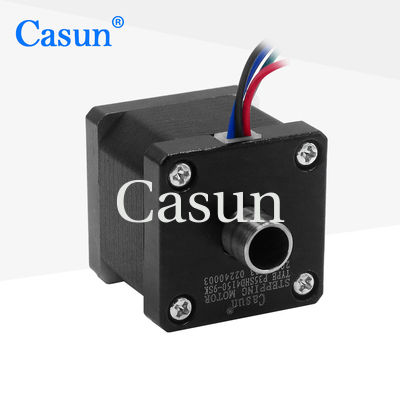

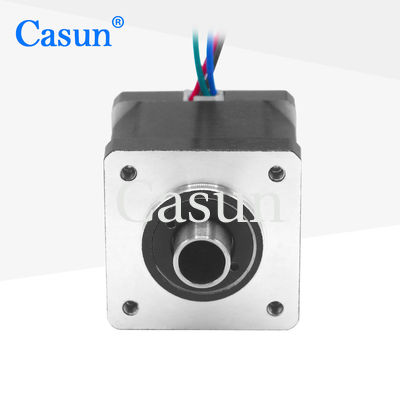

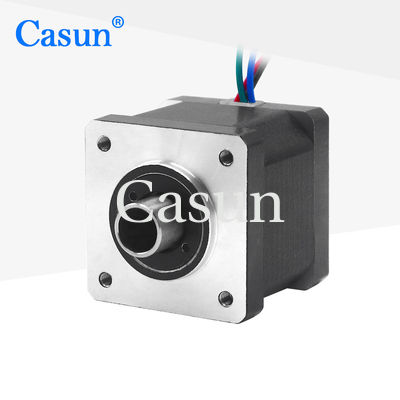

0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg

0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg

Nama merek:	Casun
Nomor Model:	P35SHD4150-9SKH
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

190mN.m

Saat ini:

1.0A

Panjang motor:

34 MM

Batang:

Panjang berongga ganda 9mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1A Hollow Shaft Stepper Motor

0.19N.M Hollow Shaft Stepper Motor

Stepper Motor Nema 14 34mm

Deskripsi Produk

The 35mm dual axis hollow stepper motor has advantages such as hollow structure, high accuracy, low noise, and fast response

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Expert in professional drivetrain solutions
Hybrid stepper building
Available in variations with a single or double shaft
Expert manufacturing research and development
Upon request, modifications

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	190 mN.m
Resistance	3.5 ohm
Inductance	3.6 mH
Rotor Inertia	20 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
