rincian produk

Rumah Produk

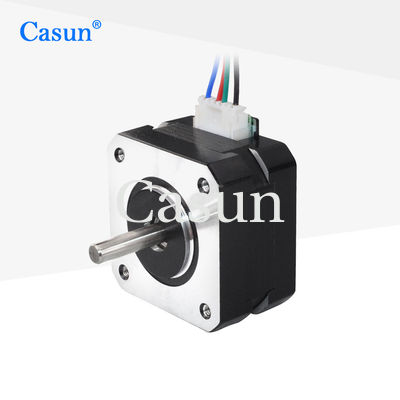

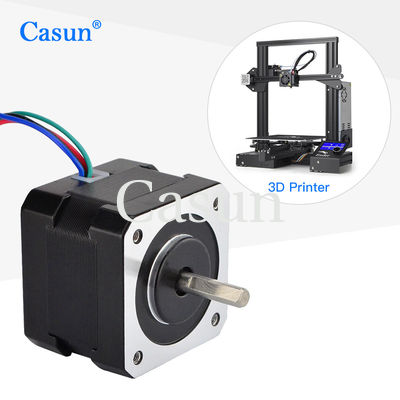

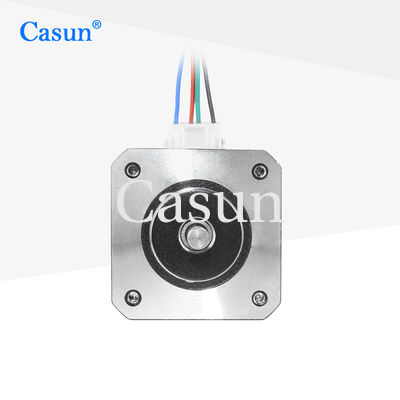

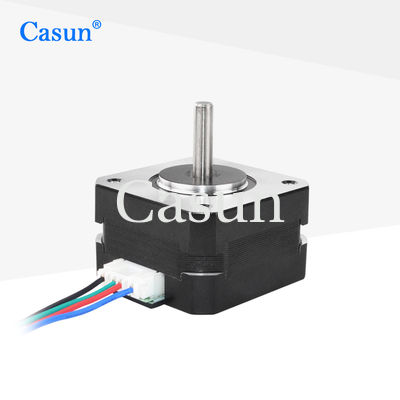

Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM

Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM

Nama merek:	Casun
Nomor Model:	42SHD4910-14B
MOQ:	1 buah
Harga:	$3-$4
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

90mN.m

Saat ini:

Panjang motor:

21mm

Batang:

Poros Bulat Panjang 13.6mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1A Nema 17 Stepper Motor

90mN.m Nema 17 Stepper Motor

0.2kg Nema 17 Stepper Motor

Deskripsi Produk

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1A
Holding Torque	90mN.m
Resistance	3.3ohm
Inductance	3mH
Rotor Inertia	15g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
