Hybrid Stepper Motor
Created with Pixso.

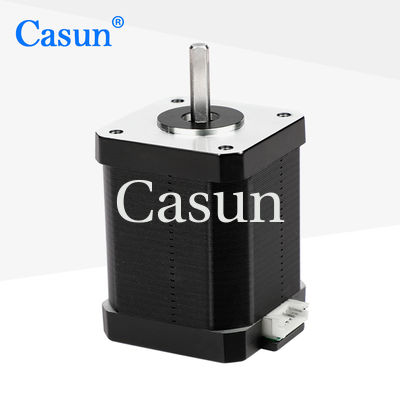

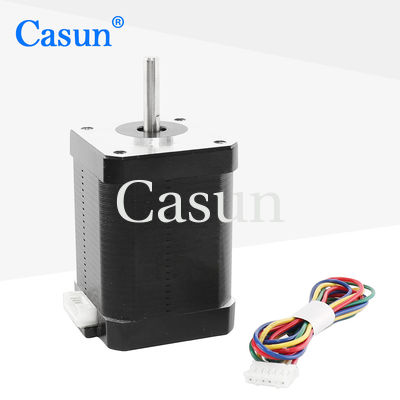

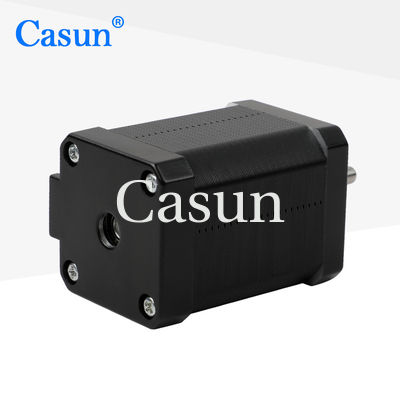

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor

Nama merek: Casun
Nomor Model: 42SHD0824-20B
MOQ: 1 buah
Harga: $8.92-$9.96
Ketentuan Pembayaran: D/A, T/T, L/C, D/P
Kemampuan Pasokan: 40000+Buah+Bulan
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
CE,ROSH,ISO
Langkah Malaikat:
1,8°
Memegang Torsi:
650mN.m
Saat ini:
1,68A
Panjang motor:
60mm
Batang:
Poros Bulat Panjang 20mm
Disesuaikan:
Motor dapat dirancang & diproduksi dengan permintaan khusus.
Disesuaikan:
Motor dapat dirancang & diproduksi dengan permintaan khusus.
Kemasan rincian:
Karton: 36x29x14cm
Menyoroti:

1.68A Nema17 Stepper Motor

,

42x42mm Nema17 Stepper Motor

,

XYZ Nema17 Stepper Motor

Deskripsi Produk

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.68 A

Holding Torque



650 mN.m

Resistance



2.1ohm

Inductance



6.2mH

Rotor Inertia



102g-cm²

Motor weight



0.48 kg

Number of leads



4

Connection



Bipolar





Appearance

Nema17 4 Lead  Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor 0

Dimensions

Nema17 4 Lead  Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
