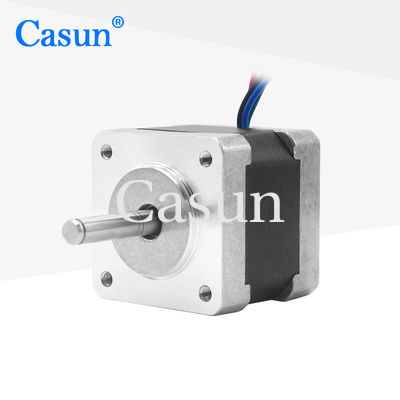

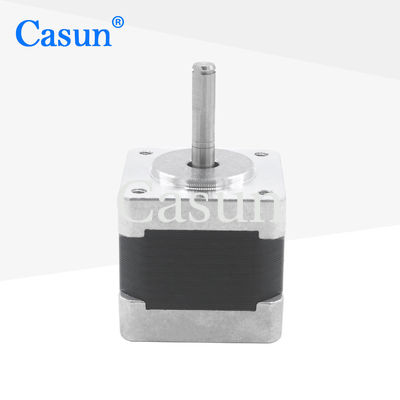

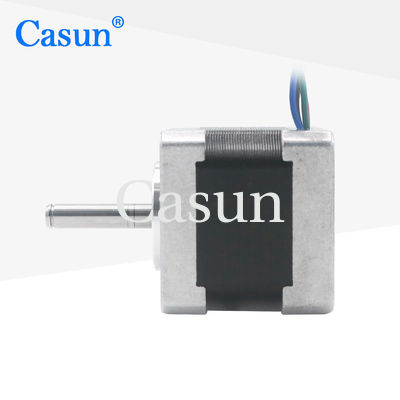

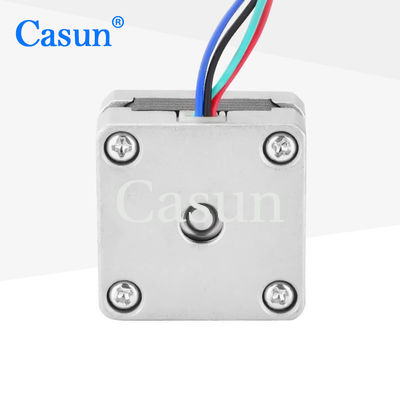

0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

Nama merek:	Casun
Nomor Model:	P35SHD4119-24P
MOQ:	1 buah
Harga:	$4.2-$5.2
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

230mN.m

Saat ini:

0,75A

Panjang motor:

34 MM

Batang:

Poros Bulat Panjang 23.69mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Nema 14 3D Printer Stepper Motor

0.75A 4.8V Nema 14

35x35mm 3D Printer Stepper Motor

Deskripsi Produk

Nema 14 Hybrid stepper motor 35x35mm 0.75A 4.8V 230mN.m for 3D printer

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.75A
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9mH
Rotor Inertia	14 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
