【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment

Nama merek:	Casun
Nomor Model:	42SHD0828-24BH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

650mN.m

Saat ini:

1.7A

Panjang motor:

60mm

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

CNC router NEMA 17 stepper motor

3D Printer NEMA 17 stepper motor

1.7A NEMA 17 stepper motor

Deskripsi Produk

The NEMA 17 stepper motor adopts the principle of step-by-step motion, so it can achieve very precise position control.

Medical devices, robots, automated production lines.

Features:

Specializing in tailor-made services is our expertise
For high-tech industry and electronic industry equipment
Professional drivetrain solution specialist
Dealers are actively sought after
Each of our stepper motor models is suitable for a wide range of applications

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.7 A
Holding Torque	650 mN.m
Resistance	1.5 ohm
Inductance	2.8 mH
Rotor Inertia	102 g-cm²
Motor weight	0.48 kg
Number of leads	4
Connection	Bipolar

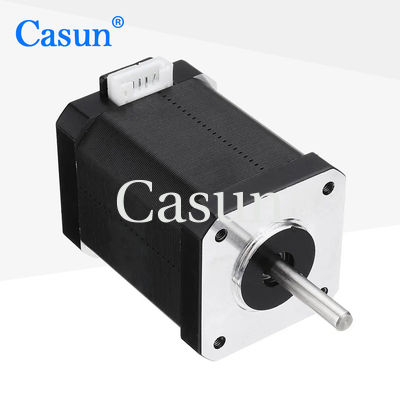

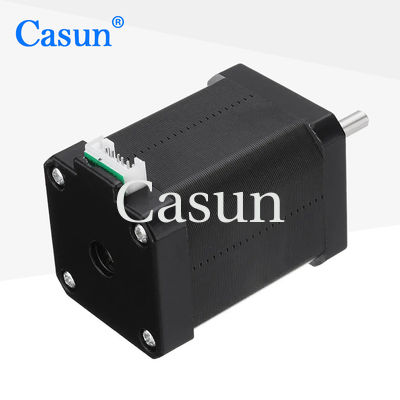

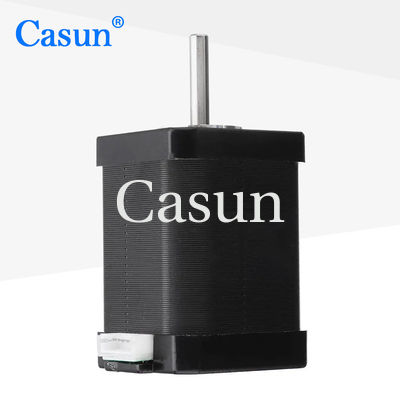

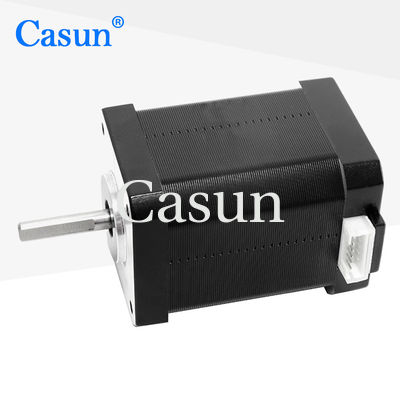

Appearance

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 0

Dimensions

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 1
Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
