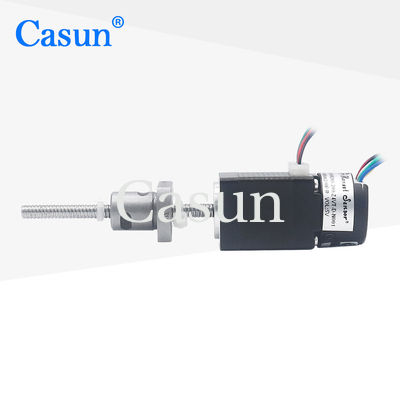

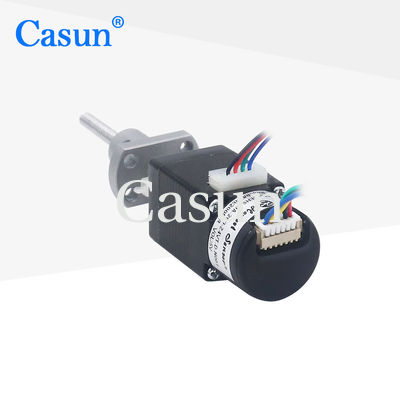

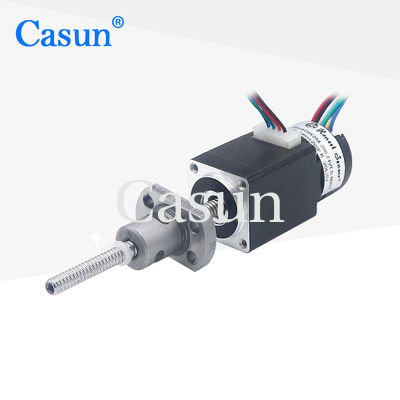

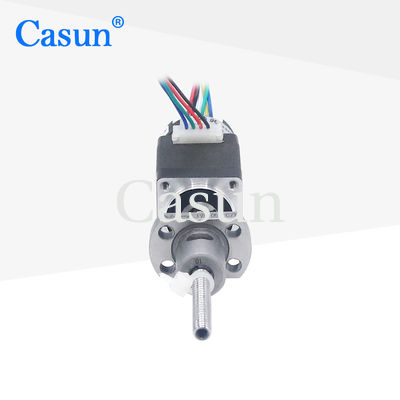

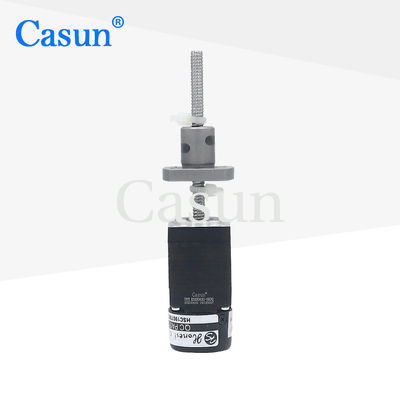

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder

Nama merek:	Casun
Nomor Model:	B20SHD4351-56GPQ
MOQ:	1 buah
Harga:	$20-$28
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

450mN.m

Saat ini:

0,5

Panjang motor:

27,5mm

Batang:

Sekrup Bola 55.5mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

27.5mm NEMA 8 Close Loop Motor

20×20×27.5mm NEMA 8

NEMA 8 Stepper Motor With Encoder

Deskripsi Produk

Features:

Accept contract manufacturing
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
High torque and high precision
Established in China for 12 years and has served more than 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	14 mN.m
Resistance	5.5 ohm
Inductance	1.5 mH
Rotor Inertia	2 g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Appearance

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 0

Dimensions

20×20×27.5mm NEMA 8 Close Loop Motor Ball Screw Stepper Motor With Encoder 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
