Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm

Nama merek:	Casun
Nomor Model:	35SHD0001-20
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

100mN.m

Saat ini:

0.4a

Nilai Tegangan:

12V

Panjang motor:

26mm

Batang:

D Poros Panjang 20mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Casun NEMA 14 Stepper Motor

Casun 12V DC Stepper Motor

35X35x26mm Stepper Motor

Deskripsi Produk

High Torque Casun 0.4A NEMA 14 Stepper Motor 35mm 12V DC Stepper Motor

35X35x26mm 0.4A 2 Phase Bipolar Hybrid 12V DC NEMA 14 Thin Stepper Motor

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

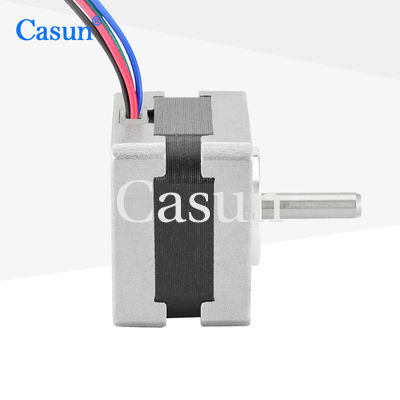

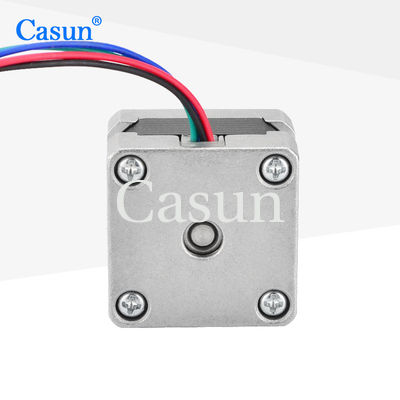

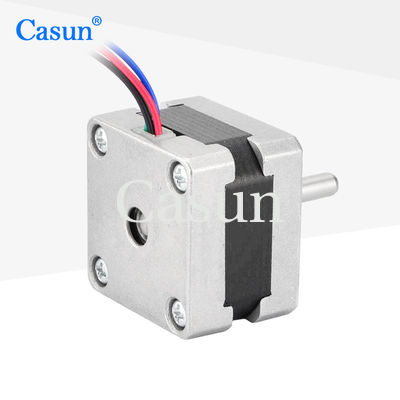

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	100 mN.m
Resistance	20 ohm
Inductance	20 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Torque Curves

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 2

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
