1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar

1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar

Nama merek:	Casun
Nomor Model:	42SHD0411-24B2H
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

520mN.m

Saat ini:

1.8A

Panjang motor:

48mm

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.8A 0.52Nm NEMA 17

0.52Nm NEMA 17 Stepper Motor

42×42×48mm Bipolar Stepper Motor

Deskripsi Produk

In a range of sizes, the 42mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.

Features:

Versions in unipolar or bipolar are offered
For electronic industrial equipment and high-tech industry equipment
Available in variations with a single or double shaft
High accuracy and torque
Expert manufacturing research and development

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	520 mN.m
Resistance	1.8 ohm
Inductance	3.2 mH
Rotor Inertia	72 g-cm²
Motor weight	0.4 kg
Number of leads	4
Connection	Bipolar

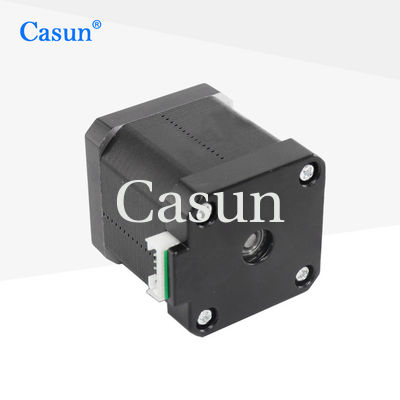

Appearance

1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 0

Dimensions

1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
