【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor

【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor

Nama merek:	Casun
Nomor Model:	42SHD0430-24B
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

500mN.m

Saat ini:

1.0A

Panjang motor:

48mm

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.0A Nema 17 hybrid motor

42SHD0430 Nema 17 hybrid motor

CNC Nema 17 hybrid motor

Deskripsi Produk

The 42mm frame stepper motor usually has a high rotational speed capability and can complete rapid acceleration and deceleration in a short period of time.

Printers, Engraving machines, 3D printers, and Robots

Features:

Superior accuracy and torque
Each model of stepper motor can be suitable for different scenarios
Recognise contract manufacturing.
Professional drivetrain solution specialist
Established in China for 12 years and has served more than 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	500 mN.m
Resistance	5.6 ohm
Inductance	12.4 mH
Rotor Inertia	72 g-cm²
Motor weight	0.38 kg
Number of leads	4
Connection	Bipolar

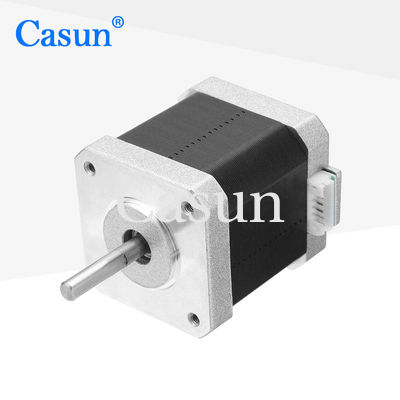

Appearance

【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 0

Dimensions

【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
