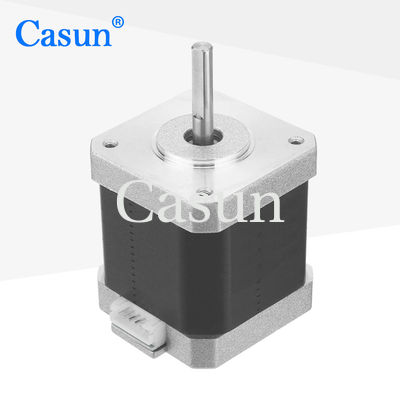

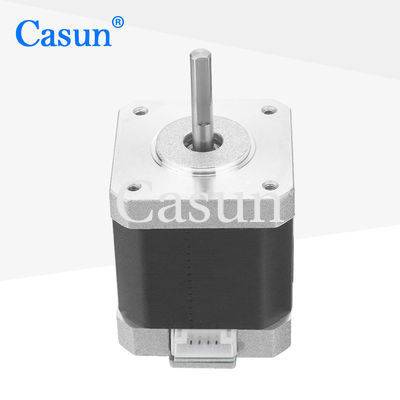

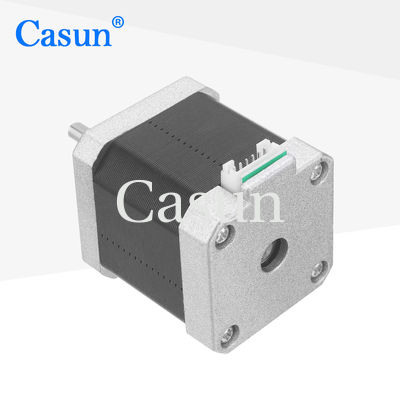

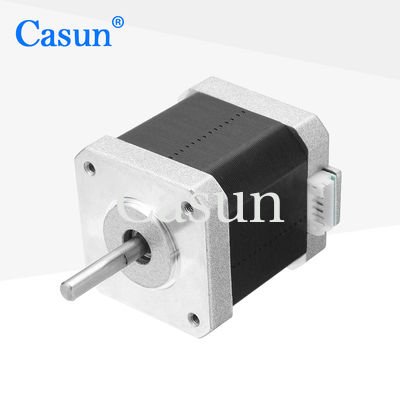

【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size

【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size

Nama merek:	Casun
Nomor Model:	42SHD0440-26B
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

400mN.m

Saat ini:

0.4a

Panjang motor:

48mm

Batang:

Penggilingan Poros Datar Panjang 26mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.8 Degree NEMA 17 CNC Kit

400mN.m NEMA 17 CNC Kit

12V DC NEMA 17 CNC Kit

Deskripsi Produk

NEMA 17 motors are generally widely supplied and supported because they are one of the standard sizes commonly found on the market.

Printers, Engraving tools, Robotics, and more

Features:

Bipolar or unipolar versions available
To offer the best solution, our engineers will contact you within 48 hours
Wanted dealers! !
Professional drivetrain solution specialist
Ten-year warranty and secure shopping

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	400 mN.m
Resistance	30 ohm
Inductance	37 mH
Rotor Inertia	72 g-cm²
Motor weight	0.38 kg
Number of leads	4
Connection	Bipolar

Appearance

【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 0

Dimensions

【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
