【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot

【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot

Nama merek:	Casun
Nomor Model:	42SHD4259-22
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

480mN.m

Saat ini:

1.2A

Panjang motor:

1000

Batang:

Poros Bulat Panjang 22mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

4 wires NEMA 17 Stepper Motor

7.2V NEMA 17 Stepper Motor

42SHD4259 NEMA 17 Stepper Motor

Deskripsi Produk

The NEMA 17 stepper motor can achieve very precise position control, and its movement can be carried out according to predetermined steps, which can stay in any position with high accuracy

Choose a baseline version or request your own customized configuration.

Features:

We provide specialised services and welcome contract manufacturing
Ten-year guarantee, buy with assurance
Available in single or double shaft versions
Professional drivetrain solution specialist
Established in China for 12 years and has served more than 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	480 mN.m
Resistance	6.0 ohm
Inductance	11.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

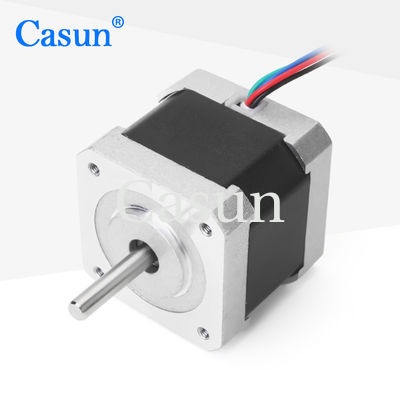

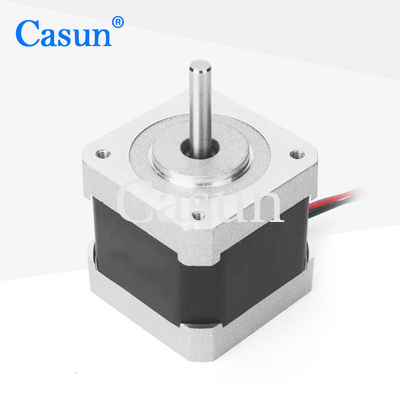

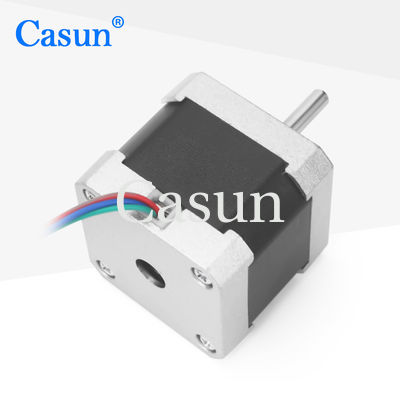

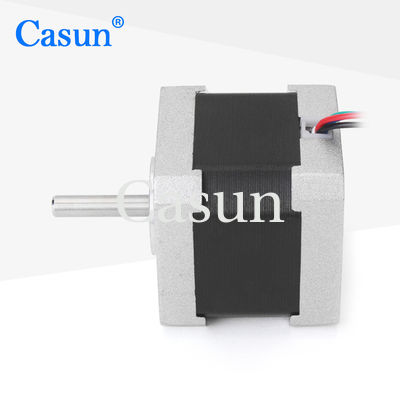

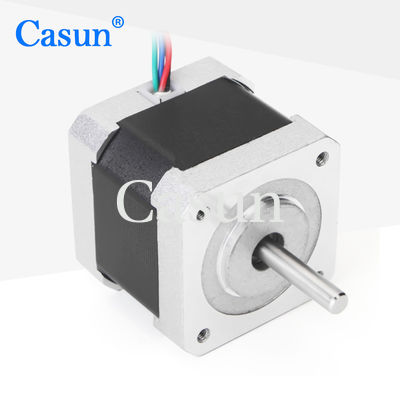

Appearance

【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot 0

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
