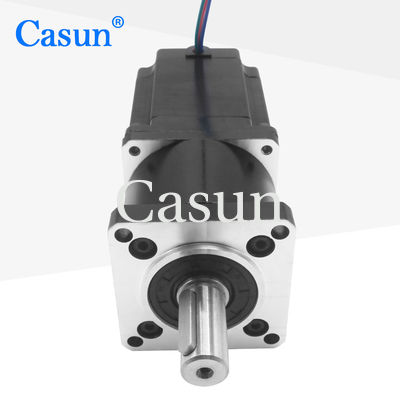

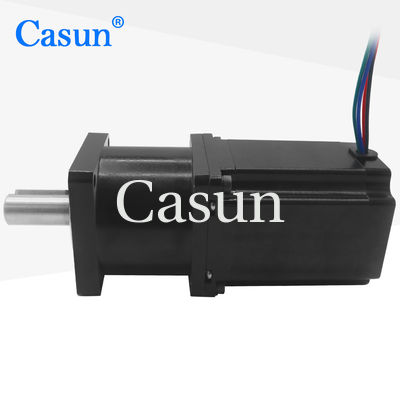

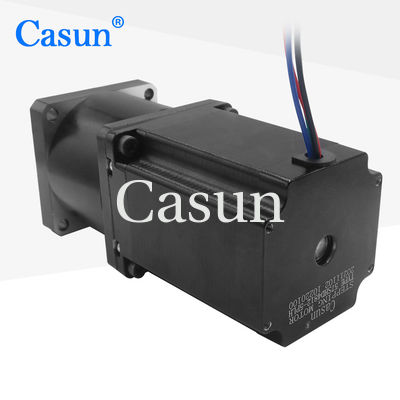

High Torque Geared Stepper Motor 57mm Nema 23 Stepping Motor With Gearbox

High Torque Geared Stepper Motor 57mm Nema 23 Stepping Motor With Gearbox

Nama merek:	Casun
Nomor Model:	57SHD4812-5PLH
MOQ:	1 buah
Harga:	$26.46-$29.46
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Kata-kata kunci:

motor stepper diarahkan

Voltase:

3.36V

Berat:

1,3kg

Sudut langkah (derajat):

1,8 Derajat

Perbandingan:

5:1

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

High Torque Geared Stepper Motor 57mm

57mm Nema 23 Stepping Motor

Nema 23 Stepping Motor With Gearbox

Deskripsi Produk

Nema 23 Good Quality High Torque Geared stepper motor 57mm Stepping Motors low cost stepper motor stepper motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57mm
Number of Phase	2 Phase
Rated Current	2.8Amp
Holding Torque	2000 mN.m
Resistance	1.2 0hm
Inductance	3.6 mH
Rotor Inertia	460g-cm²
Motor weight	1.3kg
Gear Reduction Ratio	5:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

High Torque Geared Stepper Motor 57mm Nema 23 Stepping Motor With Gearbox 1

Please click the "Get a quote" button below to tell us your requirements.
