NEMA 17 Bipolar 2 Phase 1.8 1.2A 6.6V 2 Phase Stepper Motor for Stage Light Medical Equipment

NEMA 17 Bipolar 2 Phase 1.8 1.2A 6.6V 2 Phase Stepper Motor for Stage Light Medical Equipment

Nama merek:	Casun
Nomor Model:	42SHD4287-24BH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

500mN.m

Saat ini:

1.2A

Panjang motor:

1000

Batang:

Penggilingan Poros datar Panjang 20mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.2A NEMA 17 Stepper Motor

6.6V NEMA 17 Stepper Motor

Deskripsi Produk

The 42mm stepper motors typically have stronger structural and material durability, capable of withstanding larger loads and long-term operation.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

High torque and high precision
Accept contract manufacturing
For high-tech industry and electronic industry equipment
Expert manufacturing research and development
Superior accuracy and torque

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	500 mN.m
Resistance	5.5 ohm
Inductance	11 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

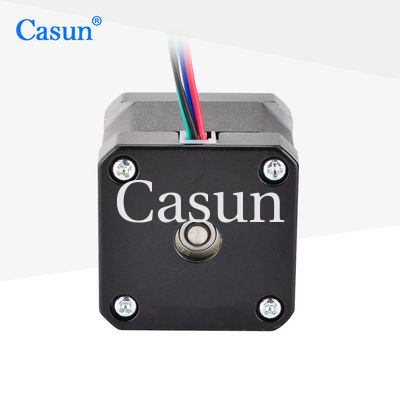

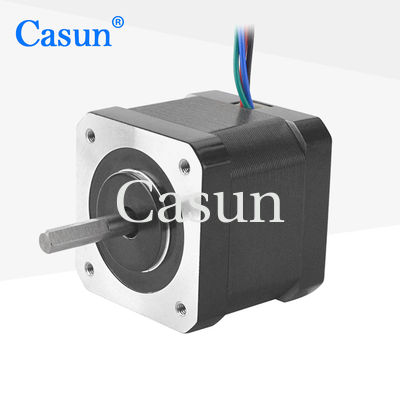

Appearance

NEMA 17 Bipolar 2 Phase 1.8 1.2A 6.6V 2 Phase Stepper Motor for Stage Light Medical Equipment 0

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
