Hight Torque Bipolar 1.8 Degree 42X42mm NEMA 17 Hybrid Step Motor for CNC Kit

Hight Torque Bipolar 1.8 Degree 42X42mm NEMA 17 Hybrid Step Motor for CNC Kit

Nama merek:	Casun
Nomor Model:	42SHD0234-24BH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

420mN.m

Saat ini:

1.2A

Panjang motor:

1000

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

42X42mm NEMA 17 Hybrid Step Motor

NEMA 17 Hybrid Step Motor

Deskripsi Produk

Suitable for various industrial and commercial applications, such as valve control, CNC machine tools, woodworking machinery, textile machinery, etc.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Established in China for 12 years and has served more than 800 customers
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Seeking distributors!

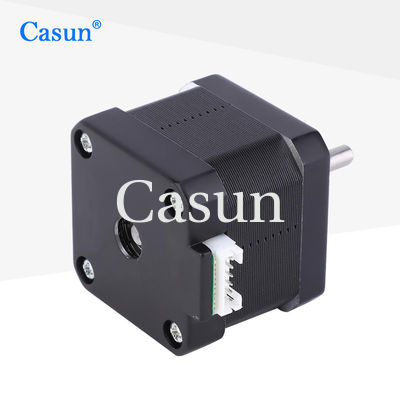

Appearance

Hight Torque Bipolar 1.8 Degree 42X42mm NEMA 17 Hybrid Step Motor for CNC Kit 0

Dimensions

Hight Torque Bipolar 1.8 Degree 42X42mm NEMA 17 Hybrid Step Motor for CNC Kit 1

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	420 mN.m
Resistance	3.2 ohm
Inductance	6.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
