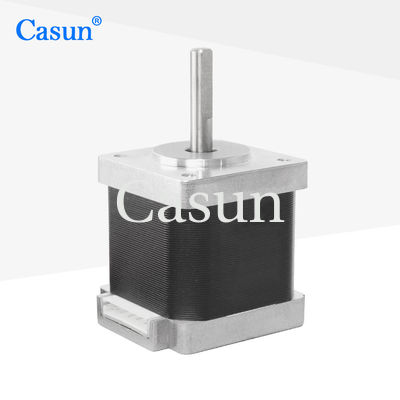

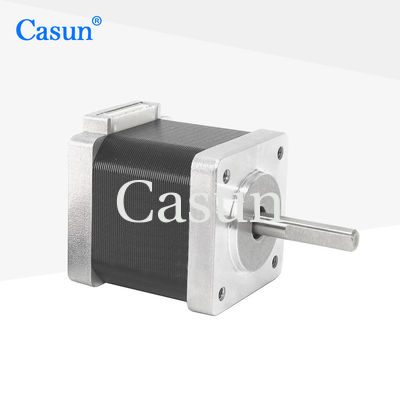

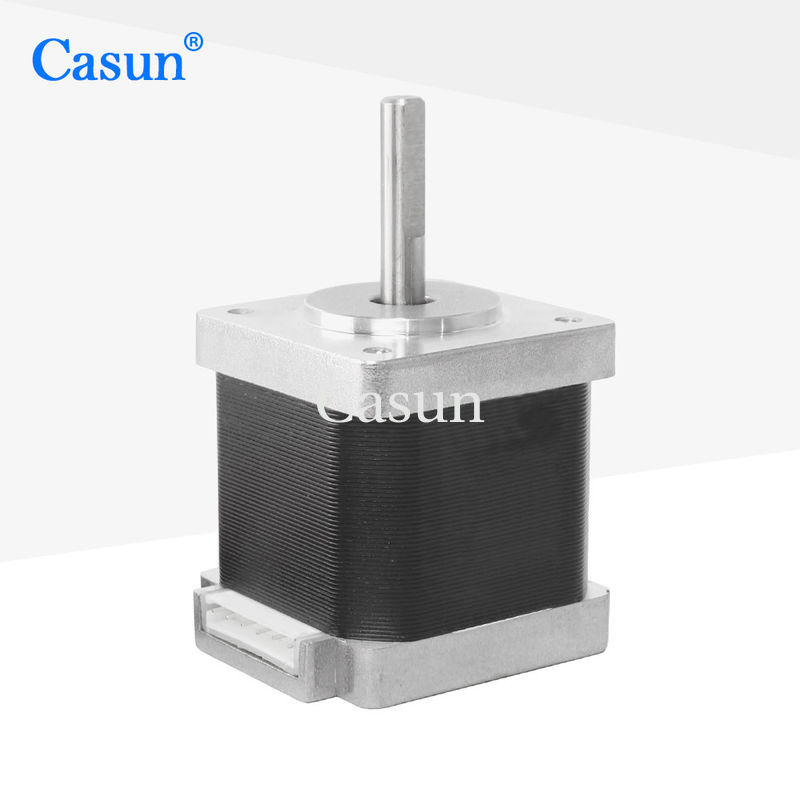

Robot 200mNm NEMA 14 Stepper Motor 35x35x40mm Bipolar 1.8 Deg

Robot 200mNm NEMA 14 Stepper Motor 35x35x40mm Bipolar 1.8 Deg

Nama merek:	Casun
Nomor Model:	35SHD0803-24B
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

200mN.m

Saat ini:

1.2A

Panjang motor:

1000

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Robot 200mNm NEMA 14 Stepper Motor

200mNm NEMA 14 Stepper Motor

35x35mm Bipolar Stepper Motor

Deskripsi Produk

The 35mm stepper motor has a simple structure, small size, light weight, and is easy to install and maintain.

35mm stepper motors are widely used in fields such as industrial automation, precision instruments, and digital equipment.

Features:

To give the best solution, our engineers will contact you within 48 hours
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Ten-year guarantee and purchase with assurance

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	200 mN.m
Resistance	2.5 ohm
Inductance	3.8 mH
Rotor Inertia	18 g-cm²
Motor weight	0.21 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
