350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS

350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS

Nama merek:	Casun
Nomor Model:	P35SHD0808-20B
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

350mN.m

Saat ini:

0.4a

Panjang motor:

1000

Batang:

Penggilingan Poros datar Panjang 20mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

33 ohm Stepper Motor 1.8 Step Angle

350mNm Stepper Motor

350mNm Two Phase Stepper Motor

Deskripsi Produk

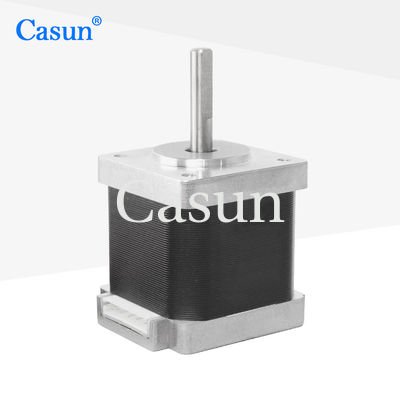

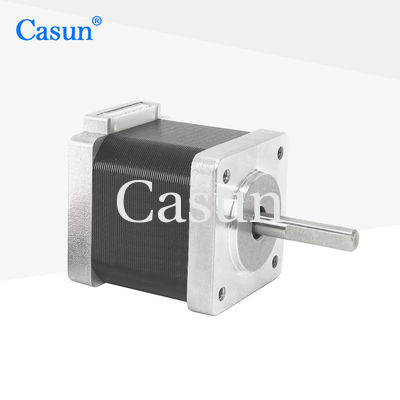

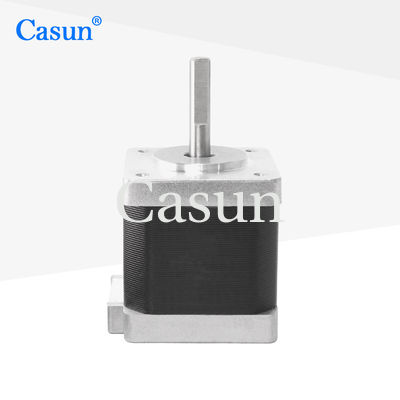

The 35mm stepper motor can rotate at a small step angle and accurately locate the desired position.

Small automation systems, water pumps, electric door locks, image scanners, and precision positioning tools

Features:

Within 48 hours, one of our engineers will contact you with the best option
Offer specialised services
Available in single or double shaft versions
Ten-year warranty and secure shopping
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	350 mN.m
Resistance	33 ohm
Inductance	42 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
