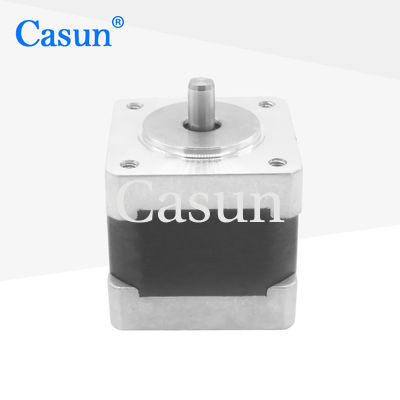

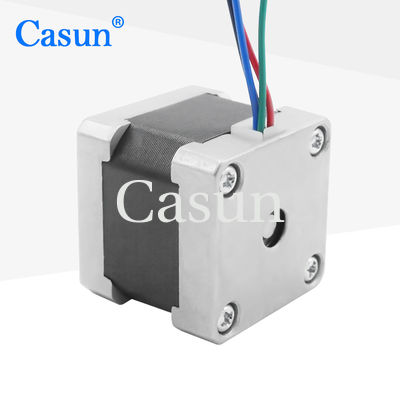

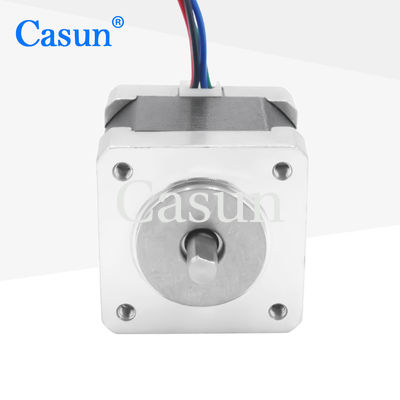

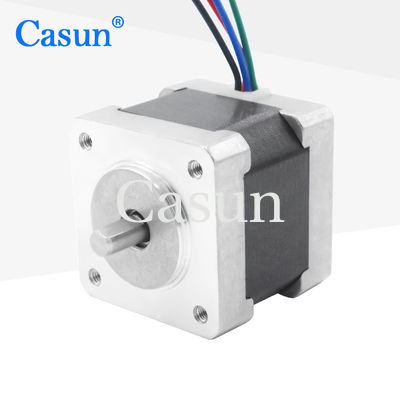

0.15Nm 1A NEMA 14 Stepper Motor 35x35x34mm 2 Phase 4 Wire Micro Stepper Motor

0.15Nm 1A NEMA 14 Stepper Motor 35x35x34mm 2 Phase 4 Wire Micro Stepper Motor

Nama merek:	Casun
Nomor Model:	35SHD4103-10B
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

155mN.m

Saat ini:

1.0A

Panjang motor:

34 MM

Batang:

Penggilingan Poros Datar Panjang 10mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

0.15Nm 1A NEMA 14 Stepper Motor

34mm 2 Phase Micro Stepper Motor

1A NEMA 14 Stepper Motor 35mm

Deskripsi Produk

The 35mm stepper motor can quickly start and stop after receiving control signals, and has good response speed.

Image scanners, electronic door locks, water pumps, small automation systems, and precise positioning devices

Features:

For equipment used in the high-tech and electrical industries, provide "multiple international certifications"
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
