0.4A 12V Stepper Motor High Torque 110 MNm 12V Bipolar Stepper Motor

0.4A 12V Stepper Motor High Torque 110 MNm 12V Bipolar Stepper Motor

Nama merek:	Casun
Nomor Model:	35SHD0003-30
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

110mN.m

Saat ini:

0.4a

Panjang motor:

26mm

Batang:

Poros Bulat Panjang 30mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

0.4A 12V Stepper Motor High Torque

12V Stepper Motor High Torque 110 mNm

Casun 12V Bipolar Stepper Motor

Deskripsi Produk

The 35mm Hybrid Stepper Motor Series can quickly start and stop, suitable for applications that require quick response and action.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Bipolar or unipolar versions available
Versions in unipolar or bipolar are offered
Available in variations with a single or double shaft
Deliver "multiple international certifications" for electrical and high-tech devices
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

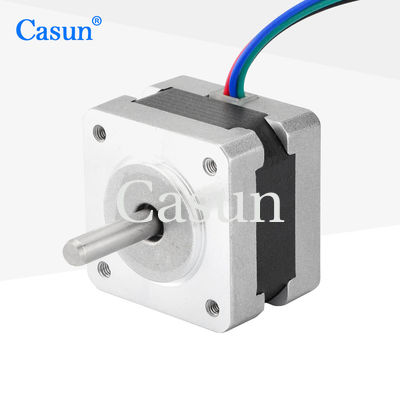

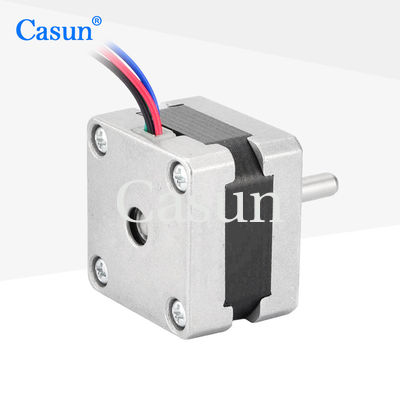

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
