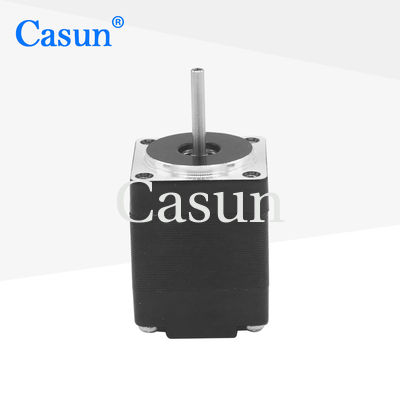

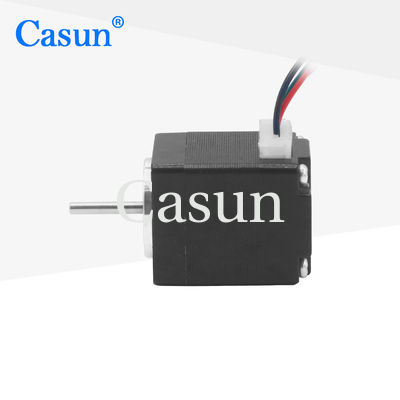

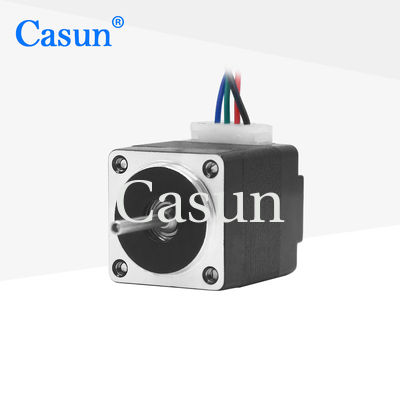

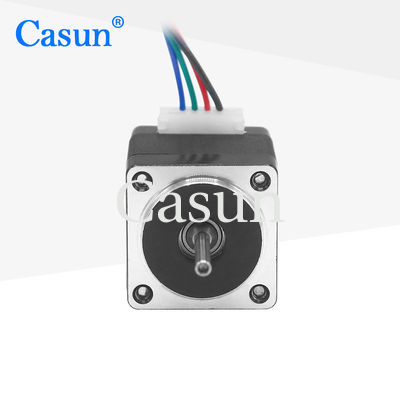

10mNm 4 Wire Bipolar Stepper Motor 5V 0.24A Nema 8 Motor 20x20x25mm

10mNm 4 Wire Bipolar Stepper Motor 5V 0.24A Nema 8 Motor 20x20x25mm

Nama merek:	Casun
Nomor Model:	B20SHD4701-14P
MOQ:	1 buah
Harga:	$5.94-$8.6
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

10mN.m

Saat ini:

0,24A

Panjang motor:

24.8mm

Batang:

Poros Bulat Panjang 14mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

10mNm 4 Wire Bipolar Stepper Motor

4 Wire Bipolar Stepper Motor 5V

5V 0.24A Nema 8 Motor

Deskripsi Produk

Nema 8 Bipolar 1.8deg 10mN.m (1.42oz.in) Stepper Motor 0.24A 5.04V 20x20x25mm 4 Wires

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.24 A
Holding Torque	10 mN.m
Resistance	21 ohm
Inductance	5 mH
Rotor Inertia	2 g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
